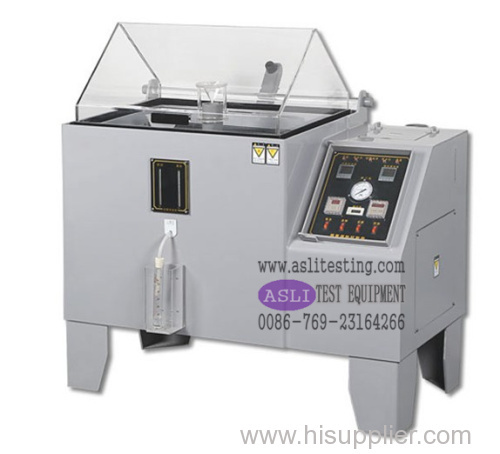

Temp&Humi Salt Spray Test Chamber for wheel hub

Environmental Salt Spray/features:

Anti-corrosive CPVC plate has been equipped with double air filter ensure that the emission gas brings no contamination to environment. Wired control board and other electrical components are positioned in certain places for easy check and maintain.

Climatical Combined Salt Frog/technical parameters:

1.Model:SDH-60

2.Salt concentration: 5 percent concentration of NaCl, or every Liter 5 percent NaCl add 0.26g CuCl2H2O

3.Compressed Air Pressure (KGf):1.0~6.0

4.Internal Dimension W*H*D (mm): 600*450*400

5.External Dimension W*H*D (mm):1100*600*1200

6.Spray Volume:1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)

7.Power:AC220V 13 lines

8.Spray Form:Continuous Spraying or Programmable Spraying Gas Density,0.1~1 percent adjustable

Temp. Humi. Salt Spray Test Chamber/application:

The sulfur dioxide based corrosive testing box are widely applied to the accelerated corrosive testing of the protective layer from metallic materials, as well as parts ,electrical components and industrial products. It can reproduce the corrosion process happened to the painted or untreated metal surface. Therefore it can be used to perform various kinds of corrosion test in according to relevant standards,such as ISO6988-1985.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 2 hours after get the call.

Service:OEM service,Design service,Buyer lable service.

Certificate of these machines:

China official 3rd party calibration report

CE certiification

For the package:

1. PP film first

2. Vacuum package

3. PP film again

4. 10mm thickness PU foam to avoid collision

5. stronged plywood case

6. Standard ASLI CASE MARK
