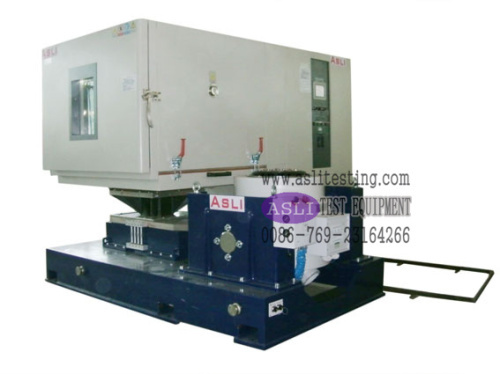

electrodynamic modal and vibration shakers for metal mold plastic mold
Structural features:

1.the inner wall : Imported SUS304 stainless steel

2.Shell: cold-rolled plate electrostatic spraying

3.insulation materials : rigid polyurethane foam or fine glass wool , with good insulation characteristics

4.Seal: silicone seal imports

5.temperature and humidity control mode : BTHC balanced thermostat humidity

6.the height of the lifting device with a separate , easy equipment and vibration table support.

7.heating: stainless steel finned air heating

8.humidification : shallow groove steam humidification

9.cold machine : Imported closed compressor , single-stage mechanical refrigeration or low repetition loop system

10.water purification equipment

11.a power automatic water

Product Specification :

1.Working Dimensions (mm): THV-408/600*800*850

2.temperature range : -70 celsius degree, -40 celsius degree, -20 celsius degree ~ +150 celsius degree

3.humidity range : 30 percent ~ 98 percent RH

4.the temperature fluctuation : about 0.5 celsius degree

5.the temperature deviation :less than 2 celsius degree

6.humidity bias : +2-3 percent RH

7.heating and cooling rate : 0.7 ~ 1 celsius degree / min

Safety devices :

1.power overload, passing control back to the overload, short circuit protection

2.ground fault protection, motor overload protection

3.over-temperature protection

4.compression overvoltage, overload

5.for the protection of equipment , all alarms are automatically cut off the power , and send voice prompts.

Use site conditions :

1.Temperature : 15 celsius degree ~ 35 celsius degree

2.Relative humidity : not more than 85 percent RH

3.Around without strong vibration , no strong electromagnetic fields

4.No high concentrations of dust around and corrosive substances

5.No direct sunlight or other sources of heat radiation

9.Ventilated installation site

7.Well grounded .

Services:

1.Provide equipment electrical schematics, consumable parts list , operation and maintenance manuals and other technical information and provide technical information supporting the main outsourcing parts .

2.training equipment operators , maintenance personnel to fully grasp the skills and general equipment repair and maintenance skills.

3.from the date of acceptance of equipment from one year to provide free service to the buyer

4.( related software and technology upgrades free of long-term support) for repair after the expiration of the paid services provided .

Certificate of these machines:

China official 3rd party calibration report

CE certiification

For the package:

1. PP film first

2. Vacuum package

3. PP film again

4. 10mm thickness PU foam to avoid collision

5. stronged plywood case

6. Standard ASLI CASE MARK
